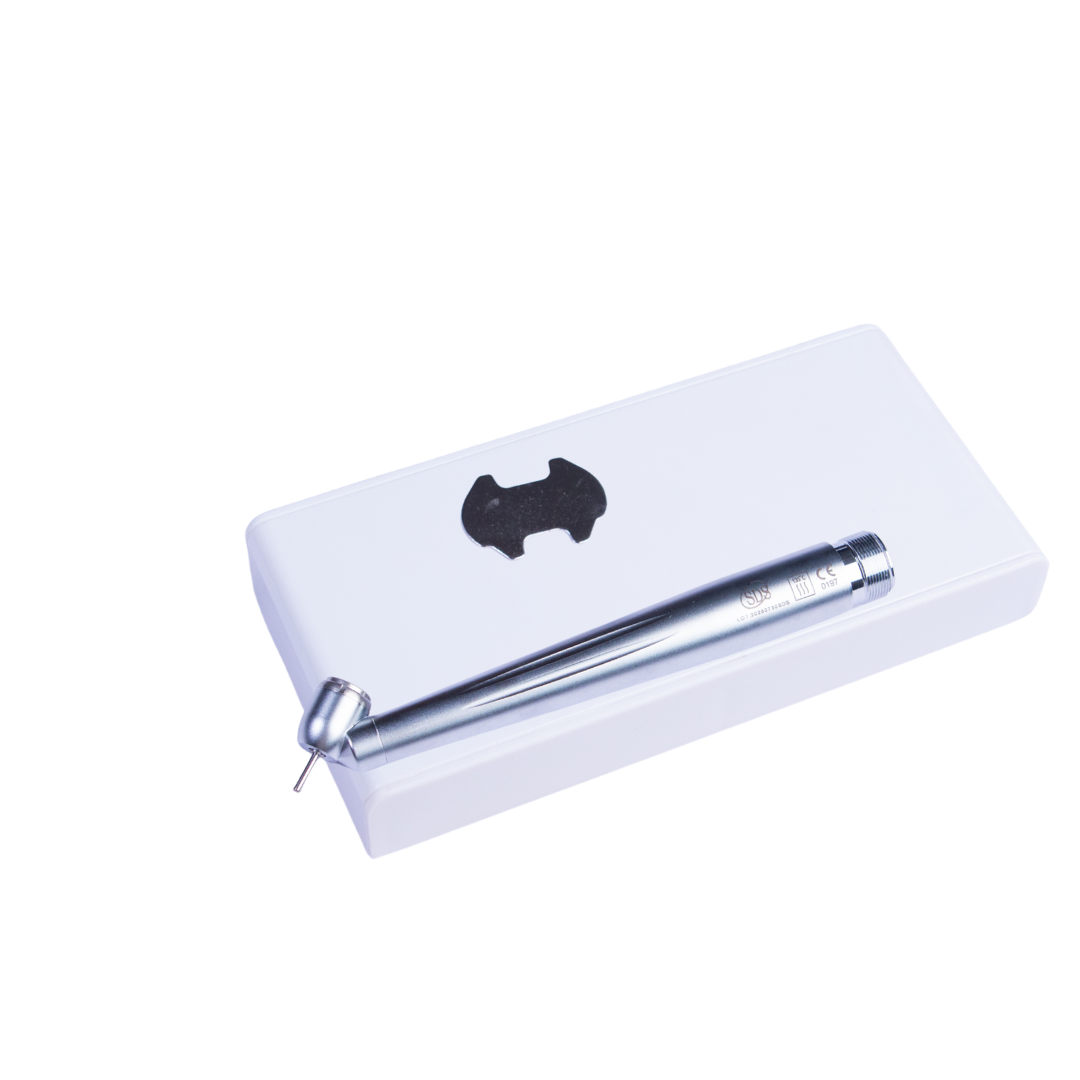

45 DEGREE AIR ROTOR
by SDS ENDO
- Sold by SDS Endo
- GST included in price
- Order on AmritSmile or the SDS Endo website
About this product
High-performance 45° angled air rotor designed for smooth, precise cutting and excellent access to difficult areas. Engineered for reduced vibration and long-lasting durability. Ergonomic and reliable, it delivers consistent performance for restorative and operative procedures without integrated lighting.
Description
The SDS Endo 45 Degree Air Rotor is expertly engineered to deliver enhanced accessibility, superior visibility, and exceptional maneuverability during dental procedures. Designed with a specialized 45-degree angled head, it allows clinicians to easily access posterior and difficult-to-reach areas while maintaining ergonomic comfort and precision. Available in both LED and Non-LED variants, this advanced handpiece caters to diverse clinical preferences, with the LED option offering enhanced illumination for improved intraoral visibility. Built for precision and efficiency, the SDS Endo 45 Degree Air Rotor delivers smooth, high-speed cutting performance while reducing operator hand fatigue, making it an ideal choice for modern dental practices.
Specifications
• Available Variants: LED / Non-LED • Air Pressure: 180–250 KPa (1.8–2.5 kgf/cm²) • Gas Consumption: ≥1.5 L/min • Noise Level: ≤70 dB • Rotation Range: 380,000 – 450,000 RPM • Cooling Water Pressure: 0.2 MPa • Torque Parameter: ≥0.016 Nm • Maximum Length of Non-Rotation Part: 13.14 mm • Handpiece Head Diameter: Ø11.2 mm • Compatible Diamond Bur: ISO1797-1 Type 3 Ø1.59–1.6 mm • Compatible Bur Length: 21–23 mm • Connection Method: ISO 9168 / YY/T 0514 • Sterilization: Autoclavable up to 134°C • Sterilization Resistance: Up to 250 cycles
Key Features
• 45° Angled Head Design – Provides improved access and visibility in posterior and restricted areas • LED & Non-LED Options – Choose between illuminated or standard handpiece as per clinical preference • High-Speed Rotation – Delivers efficient and smooth cutting performance • Enhanced Ergonomics – Reduces hand fatigue during prolonged procedures • Low Noise Operation – Ensures a quieter and more comfortable working environment • Reliable Torque Output – Maintains consistent cutting efficiency during treatment • Durable Construction – Built for long-lasting clinical reliability • Fully Autoclavable – Resistant to repeated sterilization cycles for infection control
Direction of Use
1. Ensure the SDS Endo 45 Degree Air Rotor is properly sterilized before use. 2. Connect the handpiece securely to the coupling unit. 3. Adjust air pressure according to recommended operating range. 4. Insert the compatible bur firmly into the chuck system. 5. Position the angled head for optimal visibility and accessibility during treatment. 6. Use controlled pressure while performing cutting or shaping procedures. 7. After use, clean, lubricate, and sterilize the handpiece thoroughly before storage.
PACKAGING
1 X AIR ROTOR
