SDS DIAMOND BURR BC BURR
by SDS ENDO
- Sold by SDS Endo
- Order on AmritSmile or the SDS Endo website
About this product
Pack of 5 Burrs | SDS Diamond Burr BC Series — spherical diamond burs with an integrated safety collar that prevents over-insertion and protects soft tissue during cavity access. Standard grit, FG shank, compatible with all high-speed air rotor handpieces. CLICK HERE TO DOWNALOD THE BURR BROCHURE
Description

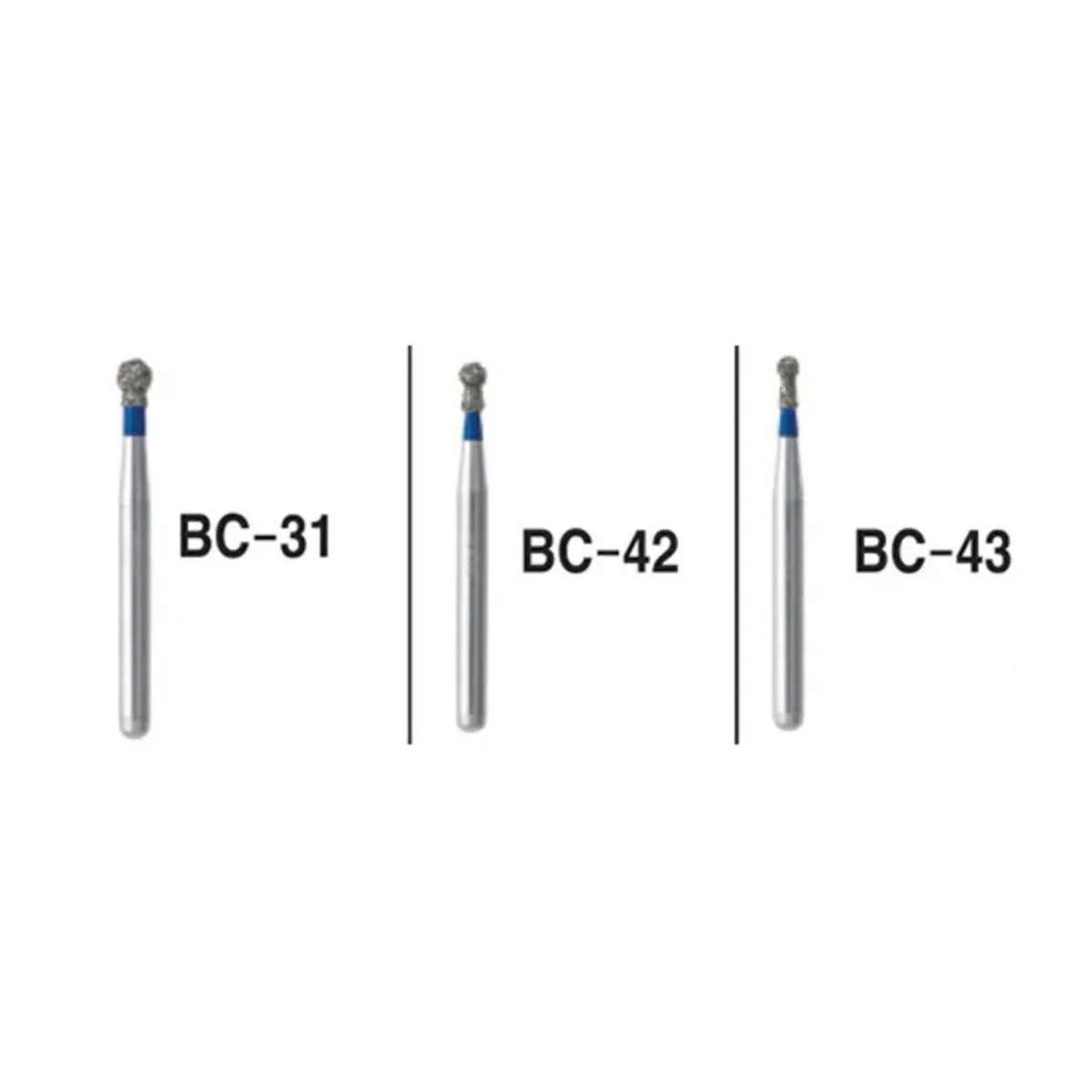

The SDS Diamond Burr BC Series features a spherical cutting head with a specialized safety shoulder collar positioned at the neck of the bur, just below the working head. This collar acts as a depth stop, preventing inadvertent over-insertion and protecting soft tissue during cavity entry. Available in Standard (Blue) grit, the BC Series delivers the familiar ball bur cutting geometry with a built-in layer of clinical safety.
Key Features

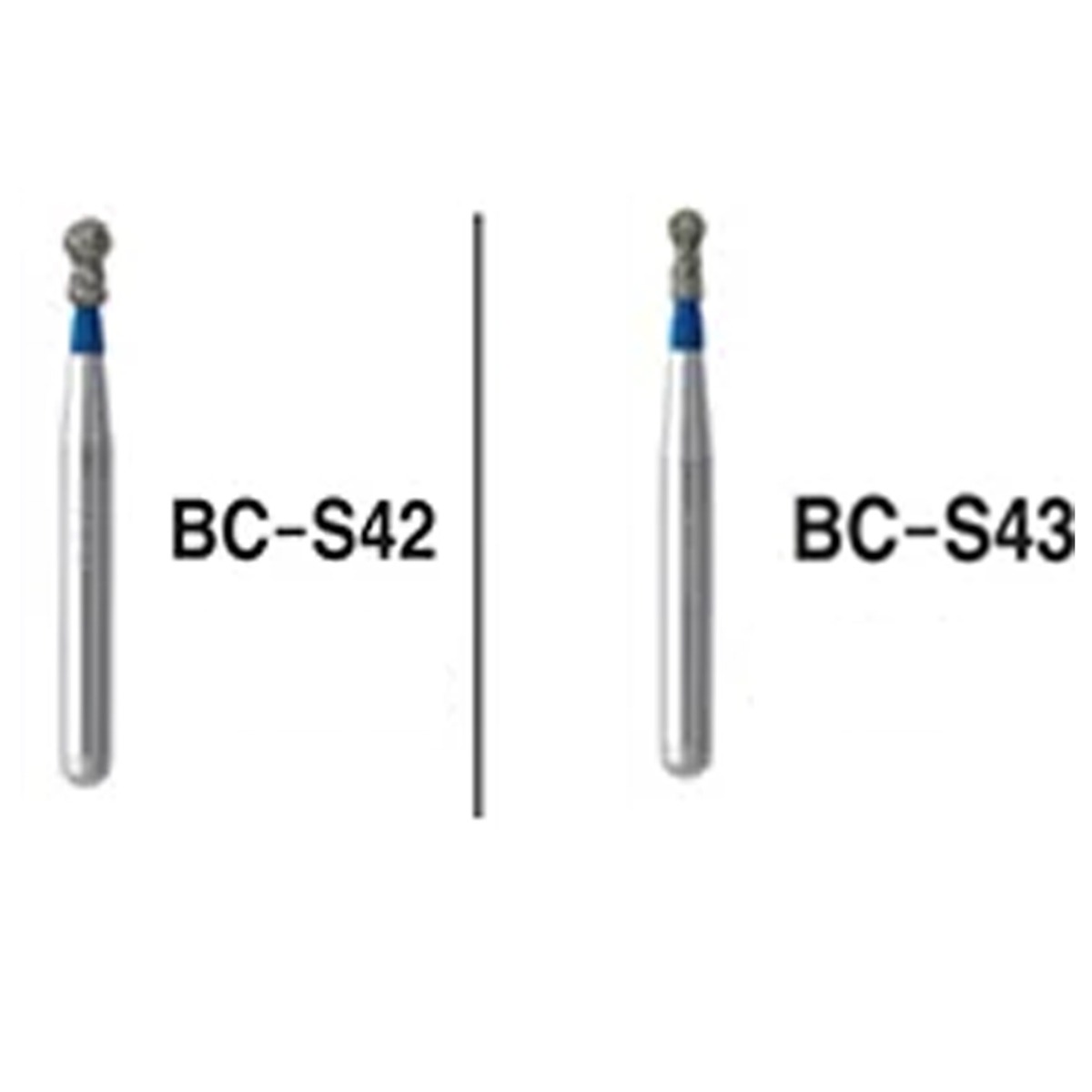

• Spherical working head with an integrated safety shoulder collar at the neck • Available in Standard (Blue) grit: 106-125 um particle size • FG shank compatible with all standard high-speed air rotor handpieces • Safety collar prevents over-insertion and protects gingival tissue during cavity access • Available in regular and short-shank (S) variants
Other Features
• Ideal for accessing pulp chambers with controlled depth limitation • Collar provides visual confirmation of maximum insertion depth during use • Suitable for enamel and dentine access in crown and restorative procedures • Standard grit provides balanced cutting speed with built-in tissue safety

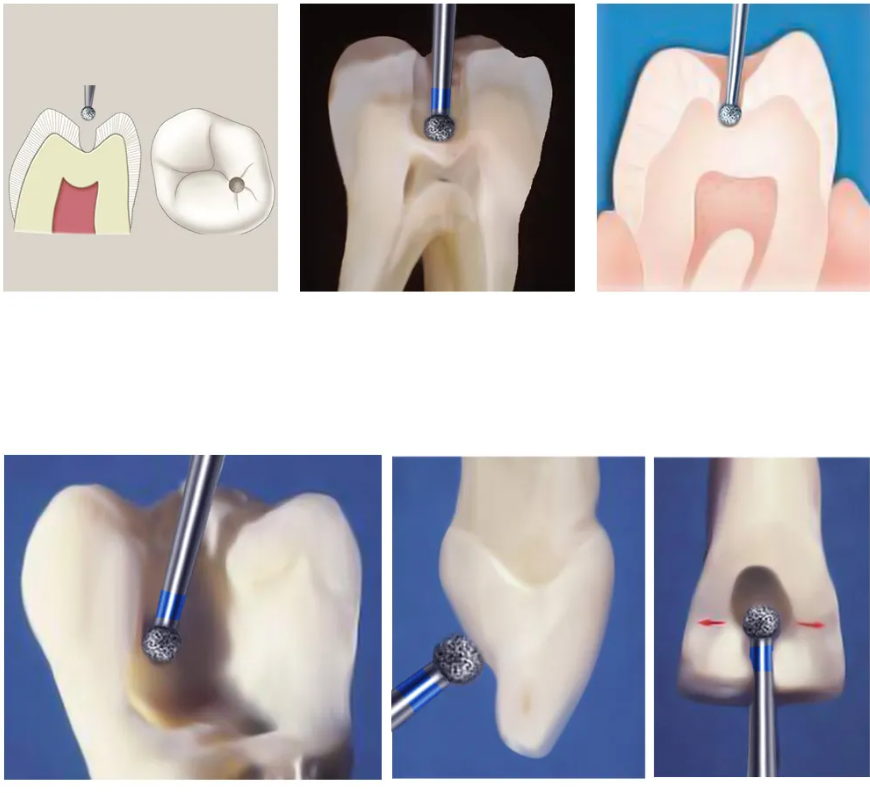

Directions of Use
1. Standard (Blue) grit is recommended for all BC Series applications. 2. Seat the FG shank in the high-speed air rotor handpiece. Operate at 150,000-300,000 RPM with water coolant. 3. Position the bur perpendicular to the tooth surface at the intended entry point. 4. Apply gentle apical pressure and allow the collar to function as the natural depth stop. 5. Do not force the bur beyond the collar level as the collar defines the intended maximum insertion depth. 6. Autoclave after use. Replace if collar or spherical head shows wear or deformation.
Why SDS Endo Burr
SDS Diamond Burrs are manufactured with premium-grade sintered natural diamond particles, uniformly bonded to a precision-engineered stainless steel shank. Every bur undergoes strict quality control checks for concentricity, dimensional accuracy, and consistent grit distribution before dispatch. Designed as a reliable, cost-effective alternative to leading imported brands, SDS Diamond Burrs deliver clinical-grade cutting efficiency at an accessible price — making them the smart choice for the modern Indian dental practice.
Packaging
Pack of 5 Burrs
