SDS DIAMOND BURR TR SERIES
by SDS ENDO
- Sold by SDS Endo
- GST included in price
- Order on AmritSmile or the SDS Endo website
About this product
Pack of 5 Burrs | SDS Diamond Burr TR Series — tapered round-end diamond burs in 5 grits, engineered for smooth chamfer margin preparations with minimal enamel micro-fractures at the gingival margin. FG shank, compatible with all high-speed air rotor handpieces. CLICK HERE TO DOWNALOD THE BURR BROCHURE
Description

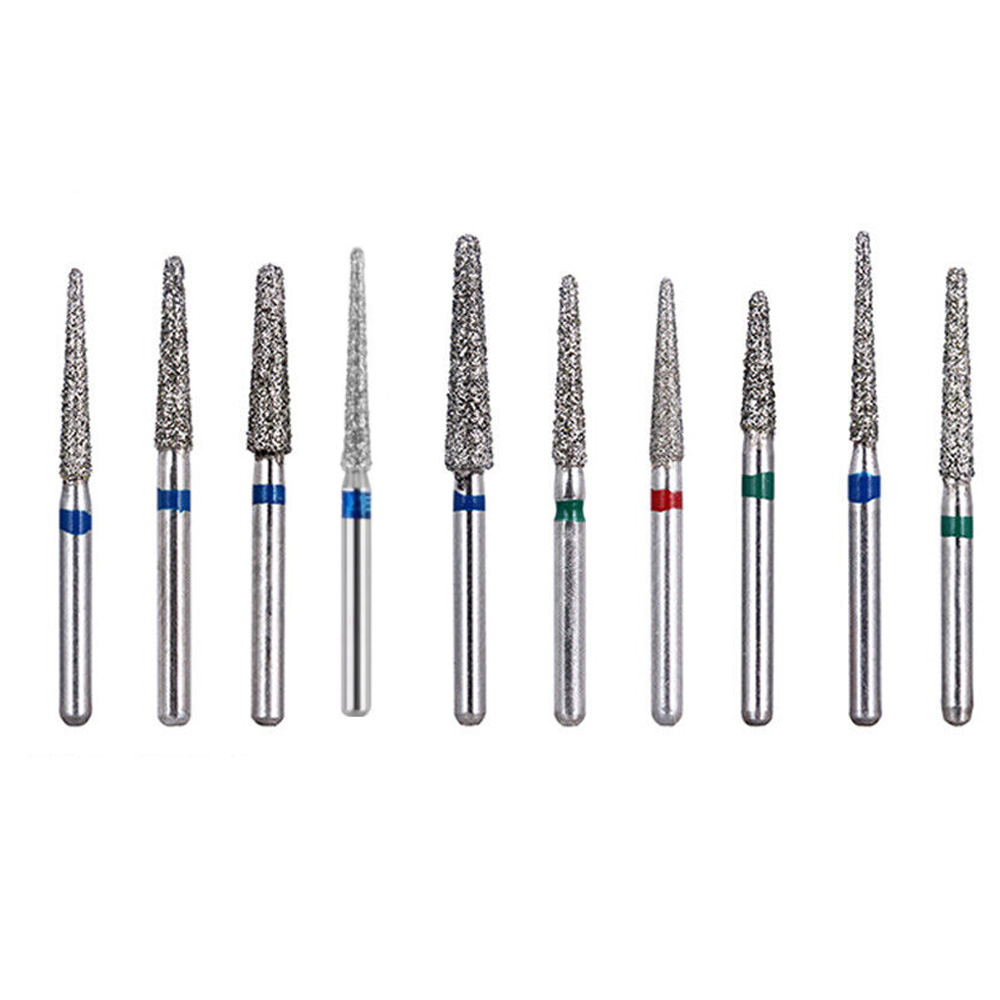

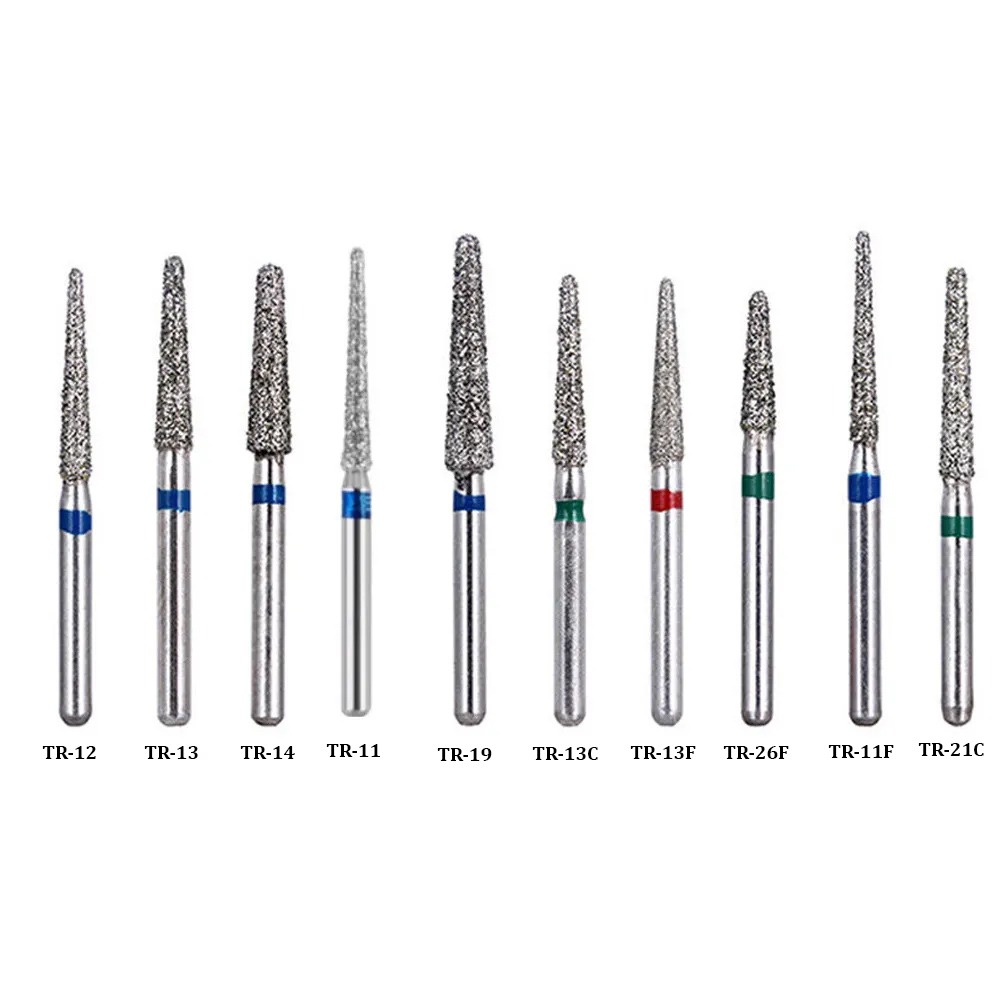

The SDS Diamond Burr TR Series features a tapered working head with a rounded terminal end, providing smooth, chamfer-style margin transitions in crown and bridge preparations. The gently rounded tip prevents micro-fractures at the gingival margin and enables precise deep chamfer cuts with minimal trauma to the tooth structure. Available across all five grit levels, the TR Series supports the complete preparation workflow from initial bulk reduction to refined finishing.
Key Features
• Tapered body with rounded end for smooth deep chamfer and deep shoulder margin preparations • Available in 5 grits: Super Coarse (Black, 180-212 um), Coarse (Green, 125-150 um), Standard (Blue, 106-125 um), Fine (Red, 53-63 um), Extra Fine (Yellow, 20-30 um) • FG shank compatible with all standard high-speed air rotor handpieces • Rounded tip reduces risk of enamel micro-fractures at the gingival margin • Available in regular and short-shank (S) variants for posterior access
Other Features
• Ideal for full-crown preparations requiring well-defined, smooth subgingival margins • Rounded end minimises apical tissue trauma during subgingival margin definition • Fine and Extra Fine variants allow precise margin finishing without over-reduction • Suitable for enamel, dentine, and ceramic reduction
Directions of Use
1. Select grit: Black (SC) or Green (C) for initial enamel and dentine reduction; Blue (S) for general preparation; Red (F) for chamfer refinement; Yellow (EF) for final margin polishing. 2. Seat the FG shank in the high-speed air rotor handpiece. Operate at 150,000-300,000 RPM with water coolant. 3. Begin with axial wall reduction using the lateral face of the taper. 4. Use the rounded tip to define the gingival margin line in a single controlled movement. 5. Apply gentle intermittent pressure and avoid continuous static contact. 6. Autoclave after use. Replace when cutting action is noticeably diminished.
Why SDS Endo Burr
SDS Diamond Burrs are manufactured with premium-grade sintered natural diamond particles, uniformly bonded to a precision-engineered stainless steel shank. Every bur undergoes strict quality control checks for concentricity, dimensional accuracy, and consistent grit distribution before dispatch. Designed as a reliable, cost-effective alternative to leading imported brands, SDS Diamond Burrs deliver clinical-grade cutting efficiency at an accessible price — making them the smart choice for the modern Indian dental practice.
Packaging
Pack of 5 Burrs
