SDS DIAMOND BURR EX SERIES
by SDS ENDO
- Sold by SDS Endo
- GST included in price
- Order on AmritSmile or the SDS Endo website
About this product
The SDS Diamond Burr EX Series encompasses a range of proprietary and non-standard bur geometries — including multi-radius profiles, curved working ends, and extended shanks — engineered for clinical situations where conventional shapes are insufficient. Each shape number within the EX Series corresponds to a distinct working geometry for a targeted application, and the series also includes short-shank (S) and super-short (SS) variants for extreme access restriction. Available in Super Coarse, Standard, Fine, and Extra Fine grits. CLICK HERE TO DOWNALOD THE BURR BROCHURE
Description

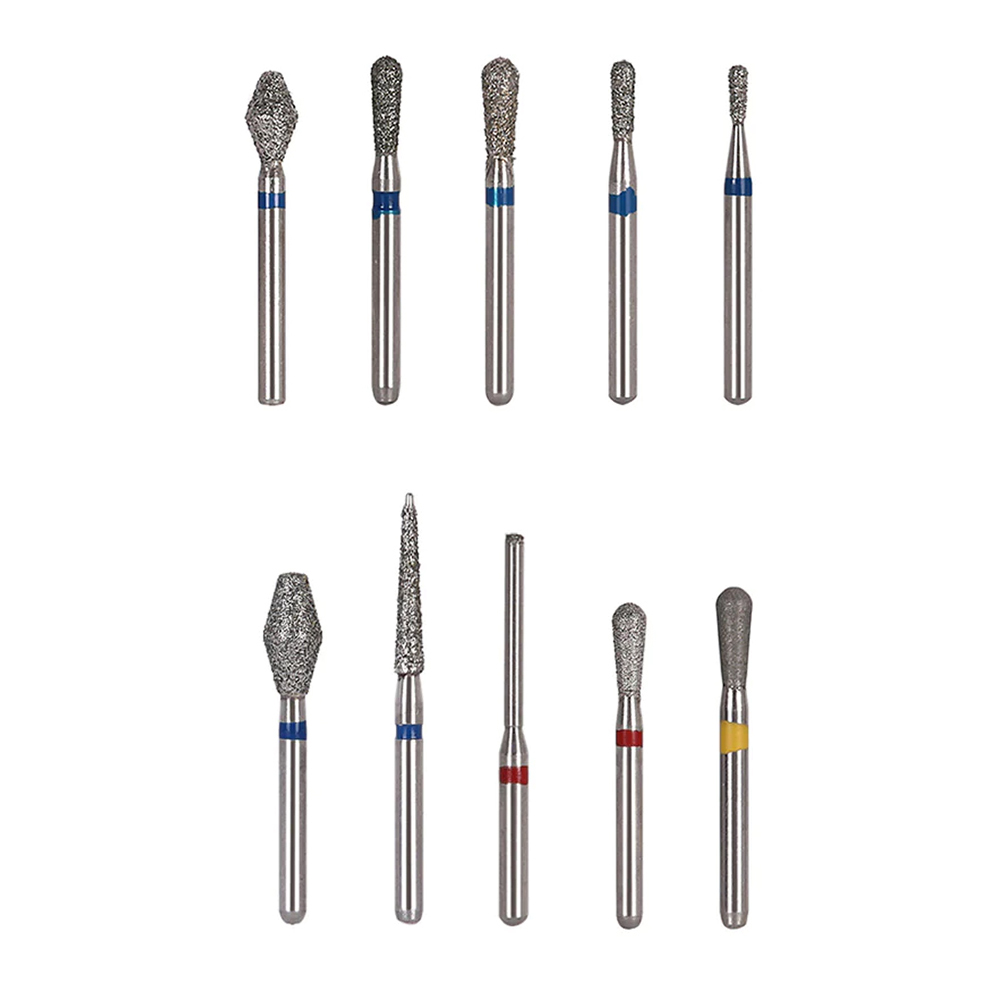

The SDS Diamond Burr EX Series is a collection of specialised and proprietary shapes that fall outside standard bur geometry categories. EX Series burs feature multi-radius profiles, extended-length shanks, curved working ends, and other non-standard geometries engineered for specific clinical challenges. Each EX shape is designed to access and prepare areas that are difficult or impossible to reach with conventional bur geometries.
Key Features
• Proprietary multi-radius or non-standard profiles for specialised clinical applications • Available in 4 grits: Super Coarse (Black, 180-212 um), Standard (Blue, 106-125 um), Fine (Red, 53-63 um), Extra Fine (Yellow, 20-30 um) • FG shank compatible with all standard high-speed air rotor handpieces • Available in regular, short-shank (S), and super-short (SS) variants for extreme access restriction • Each shape number within EX Series such as EX-11, EX-21, EX-31 corresponds to a distinct working geometry
Other Features
• Covers emergency shapes, extended-length approaches, and unusual cavity geometry requirements • Fine and Extra Fine variants ideal for surface finishing in complex preparations • Suitable for enamel, dentine, ceramic, and composite • Shape selection requires reference to the specific EX number for the intended clinical application
Directions of Use
1. Identify the required EX shape number based on the specific clinical situation and target tooth geometry. 2. Seat FG shank in high-speed handpiece. Operate at 150,000-300,000 RPM with water coolant. 3. Approach the preparation site as indicated by the specific EX shape's intended orientation. 4. Use gentle controlled pressure appropriate to the bur's profile and avoid forcing non-standard geometries against hard resistance. 5. Use coarser grits for initial access and switch to Fine or Extra Fine for finishing. 6. Autoclave after use. Discard if any portion of the multi-radius geometry is chipped or worn.
Why SDS Endo Burr
SDS Diamond Burrs are manufactured with premium-grade sintered natural diamond particles, uniformly bonded to a precision-engineered stainless steel shank. Every bur undergoes strict quality control checks for concentricity, dimensional accuracy, and consistent grit distribution before dispatch. Designed as a reliable, cost-effective alternative to leading imported brands, SDS Diamond Burrs deliver clinical-grade cutting efficiency at an accessible price — making them the smart choice for the modern Indian dental practice.
Packaging
Pack of 5 Burrs
