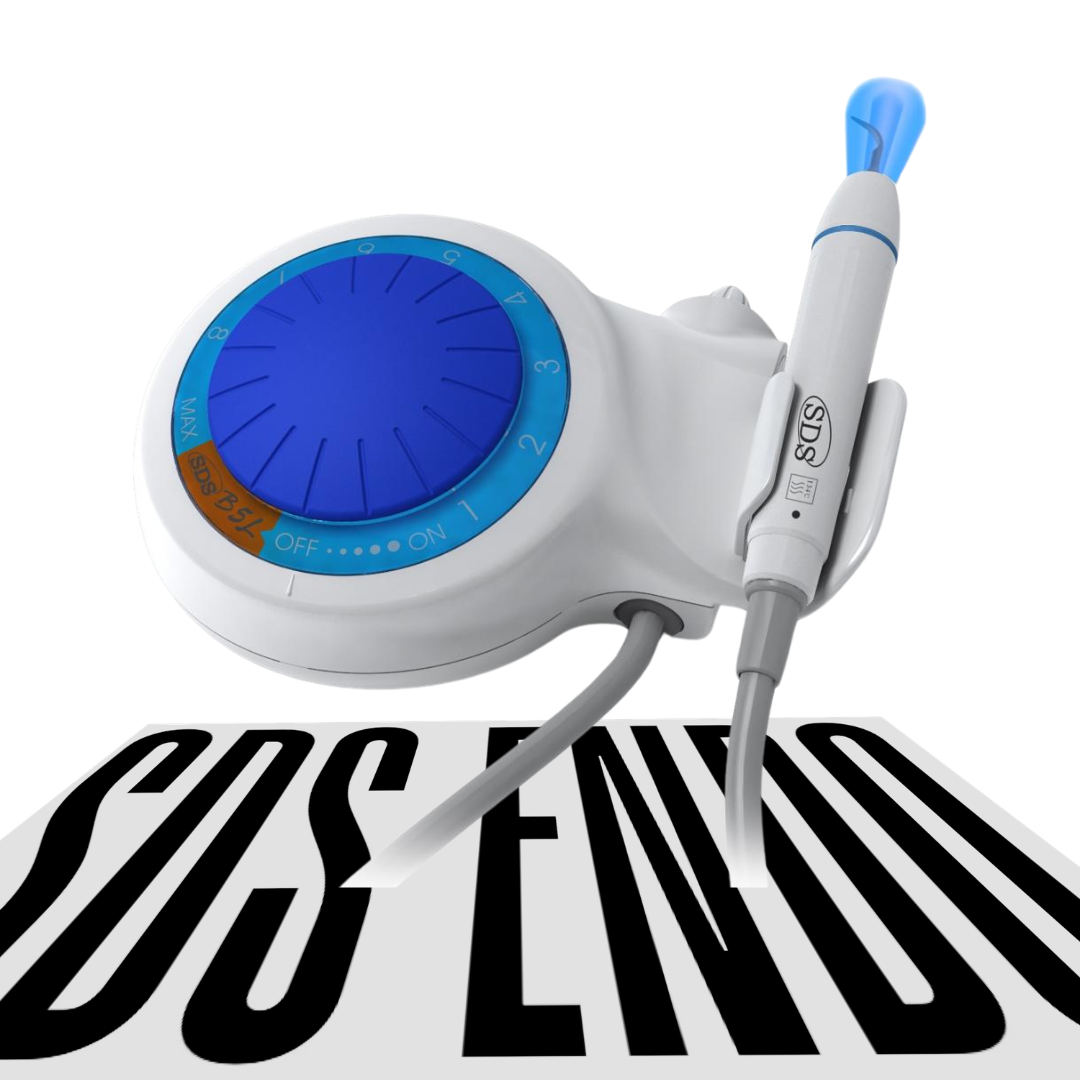

ULTRASONIC SCALER BL5 WITH LED

SDS Scaler BL5 is a high-performance ultrasonic scaling unit designed for efficient and precise dental procedures including scaling, perio, and endodontic treatments. Engineered with advanced ultrasonic technology, it delivers powerful yet controlled vibrations for effective removal of calculus, plaque, and stains while ensuring maximum patient comfort. The unit features a compact and ergonomic design with an integrated control system, offering seamless switching between multiple functions. With its detachable and autoclavable handpiece, the BL5 ensures superior hygiene standards and long-term reliability in clinical practice. Equipped with intelligent power control, water regulation, and foot switch operation, the SDS Scaler BL5 enhances clinical efficiency while maintaining precision and safety across procedures.

Function Modes: Scaling, Perio, Endo Control System: Touch panel / Knob-based power adjustment Power Supply: AC 220V / 50Hz (adaptable) Input Voltage: 30V DC Frequency: Ultrasonic frequency range (approx. 25–31 kHz) Water Pressure Requirement: 0.1 – 5 bar (0.01–0.5 MPa) Handpiece: Detachable, autoclavable Foot Control: Yes (included) Protection Class: Class II Equipment Water Supply: External bottle / direct water connection compatible Operating Condition: Indoor use Device Protection: IPX1 (drip-proof), standard equipment IPX0

Multi-Function Unit: Suitable for scaling, periodontal, and endodontic procedures Autoclavable Handpiece: Ensures optimal infection control Efficient Ultrasonic Performance: High-frequency vibration for effective calculus removal Ergonomic Design: Lightweight handpiece for better handling and reduced fatigue Precise Power Control: Adjustable intensity for different clinical needs Advanced Cooling System: Continuous water flow prevents overheating Foot Switch Operation: Hands-free control for enhanced workflow Compact & Durable Unit: Designed for long-term clinical use

Scaling: Removal of supragingival and subgingival calculus and stains Periodontal Therapy: Cleaning periodontal pockets and root surfaces Endodontic Procedures: Root canal irrigation and activation

Connect the unit to power supply and water source (bottle or direct connection) Attach the handpiece and scaler tip securely Adjust power and water flow as required Use foot switch to activate the scaler Select appropriate mode (Scaling / Perio / Endo) Perform procedure with controlled, light movements After use, clean, disinfect, and sterilize the handpiece

Clean water lines regularly to prevent blockage Replace water filter when required Autoclave handpiece after each use Avoid running the scaler without water flow Store in a clean, dry environment
